NEON LAMP C9A
| Part # |
C9A |
| Description |
Neon Lamp (NE-2J) |
| Bulb Shape | T-2 | Base Style | S.C. Midget Flanged | Circuit Volts | 105/125 |
|---|
| Glass Diameter | 0.25 in / 6. | MOL† | 0.94 in / 23 mm | Watts | 0.002 |
|---|
| Breakdown Volts Max (AC) | 95 | Breakdown Volts Max (DC) | 135 | Series Resistance (KOhms) | 30 |
|---|

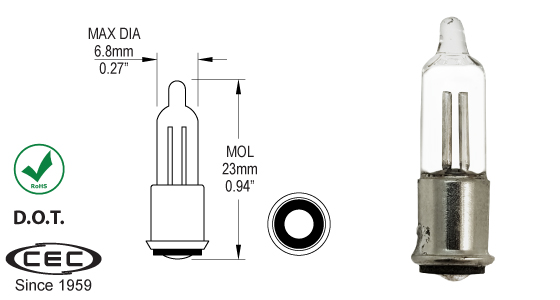

| Life Hours | 25000 | Drawing |
|
|---|
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
